METAPP
|
- Valley/Wall
- Crest/Rib
- Concealed
- Stitching
|
| |

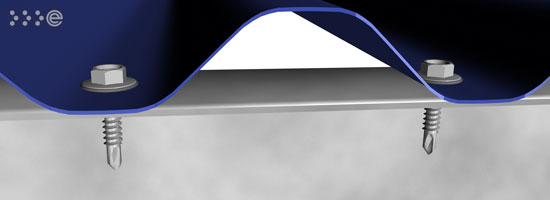

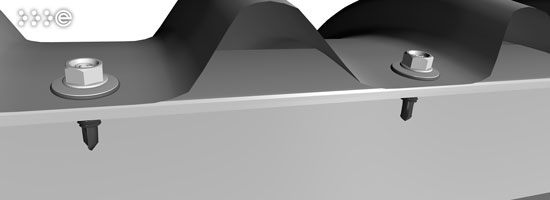

| Valley / Wall Fixing Fastener |
 |
|
|
|
|
| |
|
|
Head Type |
Enlarged Washer Flange (EWF) |
Hex Washer Flange (HWF) |
Hex Washer Head (HWH) |
Drive Type |
Hexagonal, 8mm |
Point Type |
LEVINT Drill Point |
Available Diameter |
M4.8 (#10), M5.5 (#12) & M6.3 (#14) |
|
CORROSHIELD® Cordless Screwdriver (ASK18DVB)
CORROSHIELD® Hi-Torque Magnetic Hex Socket |
|
| |
Enlarged Washer Flange with LEVINT Drill Point |
|
| |
Hex Washer Flange with LEVINT Drill Point |
|
| |
Hex Washer Head with LEVINT Drill Point |
|
| |
|
|
| |
| |
|
|
Head Type |
Indented Hex Head (IHH) |
Drive Type |
Hexagonal, 8mm |
Point Type |
Needle Point |
Available Diameter |
M4.8 (#10), M5.5 (#12) & M6.3 (#14) |
Pilot Hole Diameter |
Thread Dia |
M4.8 (#10) |
M5.5 (#12) |
|
Hole Dia (mm) |
3.66 - 3.99 |
4.22 - 4.62 |
4.98 - 5.89 |
|
|
CORROSHIELD® Cordless Screwdriver (ASK18DVB)
CORROSHIELD® Hi-Torque Magnetic Hex Socket |
|
| |
Indented Hex Head with Needle Point |
|
| |
|
|
| |
| |
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
Head Type |
Hex Washer Flange (HWF) |
Hex Washer Head (HWH) |
Drive Type |
Hexagonal, 8mm |
Point Type |
LEVINT Drill Point |
Available Diameter |
M4.8 (#10), M5.5 (#12) & M6.3 (#14) |
|
CORROSHIELD® Cordless Screwdriver (ASK18DVB)
CORROSHIELD® Hi-Torque Magnetic Hex Socket |
|
| |
Hex Washer Flange with LEVINT Drill Point |
|
| |
Hex Washer Flange with LEVINT Drill Point |
|
| |
Hex Washer Head with LEVINT Drill Point |
|
| |
|
| |
| |
|
|
Head Type |
Indented Hex Head (IHH) |
Drive Type |
Hexagonal, 8mm |
Point Type |
Needle Point |
Available Diameter |
M4.8 (#10), M5.5 (#12) & M6.3 (#14) |
Pilot Hole Diameter |
Thread Dia |
M4.8 (#10) |
M5.5 (#12) |
|
Hole Dia (mm) |
3.66 - 3.99 |
4.22 - 4.62 |
4.98 - 5.89 |
|
|
CORROSHIELD® Cordless Screwdriver (ASK18DVB)
CORROSHIELD® Hi-Torque Magnetic Hex Socket |
|
| |
Indented Hex Head with Needle Point |
|
| |
|
|
| |
| |
|
|
|
|
| |

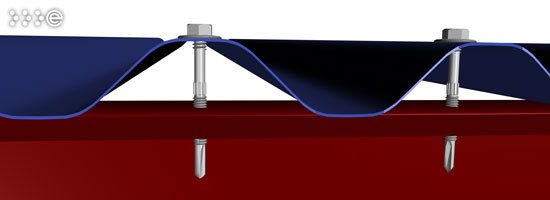

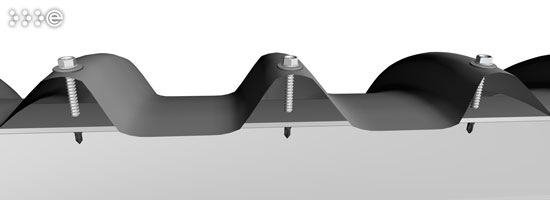

| Crest / Rib Fixing Fastener |
|
|
|
|
|
| |
|
|
Head Options |
Enlarged Washer Flange (EWF) |
Hex Washer Flange (HWF) |
Hex Washer Head (HWH) |
Drive Type |
Hexagonal, 8mm |
Point Type |
LEVINT Drill Point |
Shank Options |
A. Double Threading with SCRATCHSHIELD |
B. 2/3 Threading with SCRATCHSHIELD |
Available Diameter |
M4.8 (#10), M5.5 (#12) & M6.3 (#14) |
|
CORROSHIELD® Cordless Screwdriver (ASK18DVB)
CORROSHIELD® Hi-Torque Magnetic Hex Socket |
|
| |
Enlarged Washer Flange with ScratchShield and LEVINT Drill Point |
|
| |
Hex Washer Flange with ScratchShield and LEVINT Drill Point |
|
| |
Hex Washer Head with ScratchShield and LEVINT Drill Point |
|
| |
| Enlarged Washer Flange with 2/3 Threading and LEVINT Drill Point |
|
| Hex Washer Flange with 2/3 Threading and LEVINT Drill Point |
|
| |
| Hex Washer Head with 2/3 Threading, SCRATCHSHIELD and LEVINT Drill Point |
|
| |
|
| |
| |
| |
|
| |
| |
| |
| |
| |
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
Head Options |
Hex Washer Flange (HWF) |
Hex Washer Head (HWH) |
Drive Type |
Hexagonal, 8mm |
Point Type |
LEVINT Drill Point |
Shank Options |
A. Double Threading with SCRATCHSHIELD |
B. 2/3 Threading with SCRATCHSHIELD |
Available Diameter |
M4.8 (#10), M5.5 (#12) & M6.3 (#14) |
|
CORROSHIELD® Cordless Screwdriver (ASK18DVB)
CORROSHIELD® Hi-Torque Magnetic Hex Socket |
|
| |
Hex Washer Flange with ScratchShield and LEVINT Drill Point |
|
| |
Hex Washer Head with ScratchShield and LEVINT Drill Point |
|
| |
Hex Washer Flange with 2/3 Threading and LEVINT Drill Point |
|
| |
| Hex Washer Head with 2/3 Threading, SCRATCHSHIELD and LEVINT Drill Point |
|
| |
| |
|
| |
|
|
|
|
| |

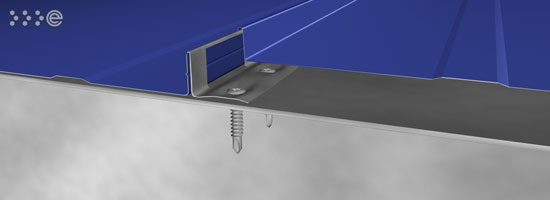

| Concealed Fasteners |
|
|
|
|
|
| |
|
|
Head Type |
Wafer Head |
Drive Type |
Philips |
Point Type |
LEVINT Drill Point |
Available Diameter |
M4.8 (#10), M5.5 (#12) & M6.3 (#14) |
|
CORROSHIELD® Cordless Screwdriver (ASK18DVB)
CORROSHIELD® Hi-Torque Magnetic Hex Socket |
|
| |
Wafer Head with LEVINT Drill Point |
|
| |
|
| |
| |
| |
|
| |
| |
| |
| |
| |
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
Head Type |
Wafer Head |
Drive Type |
Philips |
Point Type |
LEVINT Drill Point |
Available Diameter |
M4.8 (#10), M5.5 (#12) & M6.3 (#14) |
|
CORROSHIELD® Cordless Screwdriver (ASK18DVB)
CORROSHIELD® Hi-Torque Magnetic Hex Socket |
|
| |
Wafer Head with LEVINT Drill Point |
|
| |
|
| |
|
|
|
|
| |

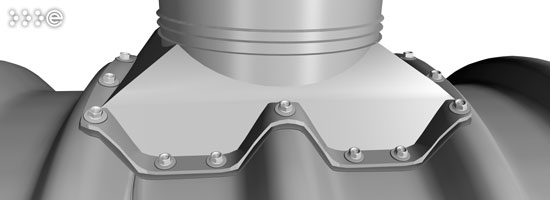

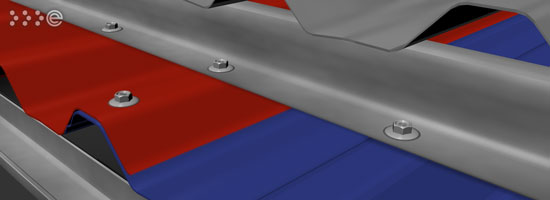

| Stitching |
|
|
|
|
|
| |
|
|
Head Type |
Hex Washer Flange (HWF) |
Hex Washer Head (HWH) |
Drive Type |
Hexagonal, 8mm |
Point Type |
LEVINT Reduced Drill Point |
Available Diameter |
M4.8 (#10), M5.5 (#12) & M6.3 (#14) |
|
CORROSHIELD® Cordless Screwdriver (ASK18DVB)
CORROSHIELD® Hi-Torque Magnetic Hex Socket |
|
| |
Hex Washer Flange with LEVINT Reduced Drill Point |
|
| |
|
| |
Hex Washer Head with LEVINT Reduced Drill Point |
|
| |
|
| |
|
| |
| |
| |
| |
| |
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
Head Type |
Hex Washer Flange (HWF) |
Drive Type |
Hexagonal, 8mm |
Point Type |
Needle Point |
Available Diameter |
M4.8 (#10), M5.5 (#12) & M6.3 (#14) |
|
CORROSHIELD® Cordless Screwdriver (ASK18DVB)
CORROSHIELD® Hi-Torque Magnetic Hex Socket |
|
| |
Wafer Head with LEVINT Drill Point |
|
| |
|
| |
|
|
|
|
| |
| |
| |
POLYTAPP
|
|
| |

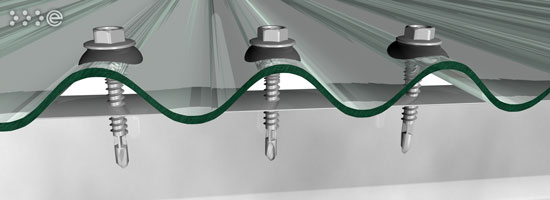

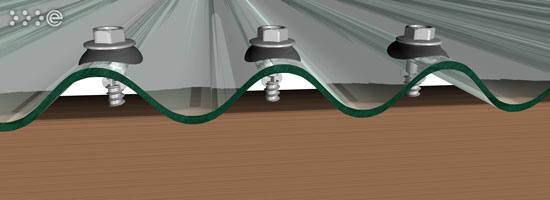

| Skylight Crest / Rib Fixing Fastener |
 |
|
|
|
|
| |
|
|
Head Type |
Hex Washer Flange (HWF) |
Washer Type |
EPDM Dome Washer (Grey / Black)
|
Drive Type |
Hexagonal, 8mm |
Point Type |
LEVINT Drill Point |
Unique Features |
POLYTAPP® Wings |
Available Diameter |
M4.8 (#10), M5.5 (#12) & M6.3 (#14) |
|
CORROSHIELD® Cordless Screwdriver (ASK18DVB)
CORROSHIELD® Hi-Torque Magnetic Hex Socket |
|
| |
Hex Washer Flange with POLYTAPP Wings and LEVINT Drill Point |
|
| |
|
| |
| |
|
| |
| |
| |
| |
| |
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
Head Type |
Hex Washer Flange (HWF) |
Washer Type |
EPDM Dome Washer (Grey / Black)
|
Drive Type |
Hexagonal, 8mm |
Point Type |
Type 17 Drill Point |
Unique Features |
POLYTAPP® Wings |
Available Diameter |
M4.8 (#10), M5.5 (#12) & M6.3 (#14) |
|
CORROSHIELD® Cordless Screwdriver (ASK18DVB)
CORROSHIELD® Hi-Torque Magnetic Hex Socket |
|
| |
Hex Washer Flange with POLYTAPP Wings and Type 17 Drill Point |
|
| |
|
| |
|
|
FIBRETAPP
|
|
| |

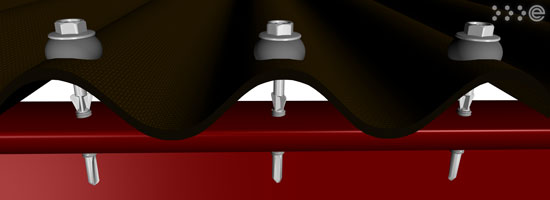

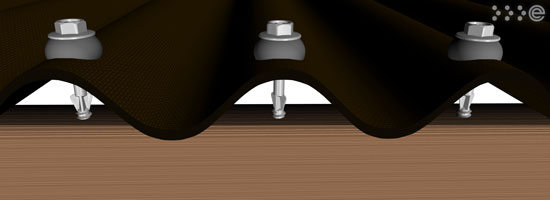

| Fibre-Cement Crest / Rib Fixing Fastener |
 |
|
|
|
|
| |
|
|
Head Type |
Hex Washer Flange (HWF) |
Washer Type |
EPDM Dome Washer (Grey / Black) |
Drive Type |
Hexagonal, 8mm |
Point Type |
LEVINT Drill Point |
Available Diameter |
M4.8 (#10), M5.5 (#12) & M6.3 (#14) |
|
CORROSHIELD® Cordless Screwdriver (ASK18DVB)
CORROSHIELD® Hi-Torque Magnetic Hex Socket |
|
| |
Hex Washer Flange with FIBRETAPP Wings and LEVINT Drill Point |
|
| |
|
| |
| |
|
| |
| |
| |
| |
| |
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
Head Type |
Hex Washer Flange (HWF) |
Washer Type |
EPDM Dome Washer (Grey / Black) |
Drive Type |
Hexagonal, 8mm |
Point Type |
Diamond Point |
Available Diameter |
M4.8 (#10), M5.5 (#12) & M6.3 (#14) |
|
CORROSHIELD® Cordless Screwdriver (ASK18DVB)
CORROSHIELD® Hi-Torque Magnetic Hex Socket |
|
| |
Hex Washer Flange with FIBRETAPP Wings and Diamond Point |
|
| |
|
| |
|
|
BOTAPP

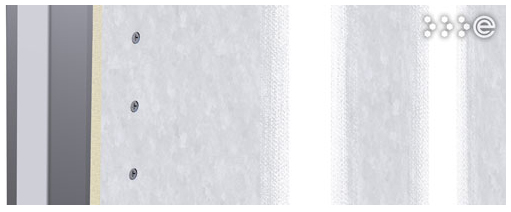

| Board Fixing / Drywall Applications Fastener |
 |
 |
| |
| Low Profile Countersunk |
Head Type |
Low Profile Countersunk with Ribs |
Drive Type |
Philips |
Point Type |
LEVIN® Reduced Drill Point (For substrates up to 1.8 mm) |
LEVIN® Drill Point (For substrates up to 5 mm) |
Available Diameter |
M4.8 (#10), M5.5 (#12) & M6.3 (#14) |
|
CORROSHIELD® Cordless Screwdriver (ASK18DVB)
CORROSHIELD® Drywall Bit |
|
| |
| Low Profile Countersunk with LEVINT Reduced Drill Point |
|
| Low Profile Countersunk with LEVINT Drill Point |
|
| Countersunk |
Head Type |
Countersunk |
Drive Type |
Philips |
Point Type |
LEVIN® Drill Point |
Unique Features |
BOTAPP® Wings |
Available Diameter |
M4.8 (#10), M5.5 (#12) & M6.3 (#14) |
|
CORROSHIELD® Cordless Screwdriver (ASK18DVB)
CORROSHIELD® Drywall Bit |
|
| |
| Countersunk with LEVINT Drill Point |
|
| |
|
CONTAPP

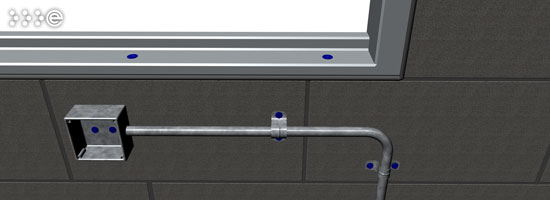

| Concrete / Masonry Fixing Fastener |
 |
 |
| |
| General Concrete / Masonry Fastening |
Head Type |
Hex Slotted Head (HSH) |
Countersunk (CSK) |
Drive Type |
HSH |
Hexagonal, 8mm |
CSK |
Philips Drive |
Point Type |
Diamond Point |
Unique Features |
Hi-Lo Thread |
Available Diameter |
M4.8 (3/16") & M6.3 (1/4") |
|
CORROSHIELD® Cordless Screwdriver (ASK18DVB)
CORROSHIELD® Hi-Torque Magnetic Hex Socket |
|
| |
| Hex Slotted Head with Hi-Lo Thread and Diamond Point |
|
| Countersunk Head with Hi-Lo Thread and Diamond Point |
|
| |

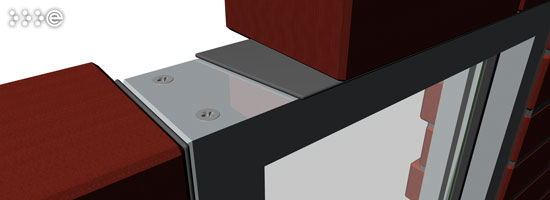

| Door / Window Frame Fastening |
Head Type |
Countersunk (CSK) |
Drive Type |
Torx Drive, #20 |
Point Type |
Gimlet Point |
Unique Features |
Hi-Lo Thread |
Available Diameter |
M7.5 (19/64") |
|
CORROSHIELD® Cordless Screwdriver (ASK18DVB)
CORROSHIELD® Hi-Torque Torx Bit |
|
| |
| Countersunk Head with Hi-Lo Thread and Gimlet Point |
|
| |
|
WINTAPP
 |
 |
| |
| Self-Drilling |
| Please inform us on the method of assembly, automated or manual. |
Head Type |
Countersunk |
Drive Type |
Philips |
Point Type |
Normal Drill Point |
Available Diameter |
M4.8 (#10), M5.5 (#12) & M6.3 (#14) |
Other diameters available upon request. |
|
CORROSHIELD® Cordless Screwdriver (ASK18DVB)
CORROSHIELD® Hi-Torque Philips Bit |
|
| |
| Countersunk with Normal Drill Point |
|
| |
| |
|
BIMATAPP
|
- Crest/Rib
- Valley/Wall
- Stitching
|
|
| |

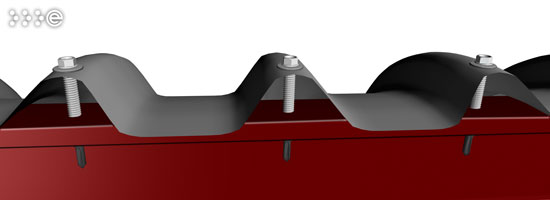

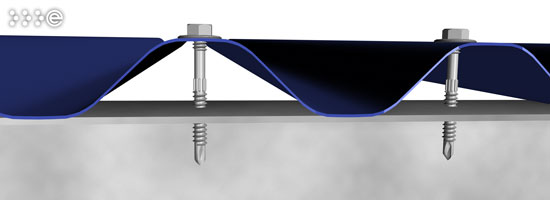

| Crest / Rib Fixing Fastener |
 |
|
|
 |
|
| |
|
|
Head Type |
Hex Washer Head (HWH) |
Drive Type |
Hexagonal, 8mm |
Point Type |
LEVINT Drill Point |
Available Diameter |
M4.8 (#10), M5.5 (#12) & M6.3 (#14) |
|
CORROSHIELD® Cordless Screwdriver (ASK18DVB)
CORROSHIELD® Hi-Torque Magnetic Hex Socket |
|
| |
Hex Washer Head with LEVINT Drill Point |
|
| |
|
| |
| |
|
| |
| |
| |
| |
| |
| |
|
|
|
|
| |
|
 |
|
| |
|
|
|
Head Type |
Hex Washer Head (HWH) |
Drive Type |
Hexagonal, 8mm |
Point Type |
LEVINT Drill Point |
Available Diameter |
M4.8 (#10), M5.5 (#12) & M6.3 (#14) |
|
CORROSHIELD® Cordless Screwdriver (ASK18DVB)
CORROSHIELD® Hi-Torque Magnetic Hex Socket |
|
| |
Hex Washer Head with LEVINT Drill Point |
|
| |
|
| |
|
|
|
|
| |

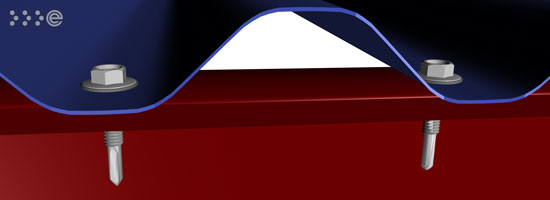

| Valley / Wall Fixing Fastener |
|
|
|
 |
|
| |
|
|
Head Type |
Hex Washer Head (HWH) |
Drive Type |
Hexagonal, 8mm |
Point Type |
LEVINT Drill Point |
Available Diameter |
M4.8 (#10), M5.5 (#12) & M6.3 (#14) |
|
CORROSHIELD® Cordless Screwdriver (ASK18DVB)
CORROSHIELD® Hi-Torque Magnetic Hex Socket |
|
| |
Hex Washer Head with LEVINT Drill Point |
|
| |
|
| |
| |
|
| |
| |
| |
| |
| |
| |
|
|
|
|
| |
|
|
|
| |
|
|
|
Head Type |
Hex Washer Head (HWH) |
Drive Type |
Hexagonal, 8mm |
Point Type |
LEVINT Drill Point |
Available Diameter |
M4.8 (#10), M5.5 (#12) & M6.3 (#14) |
|
CORROSHIELD® Cordless Screwdriver (ASK18DVB)
CORROSHIELD® Hi-Torque Magnetic Hex Socket |
|
| |
Hex Washer Head with LEVINT Drill Point |
|
| |
|
| |
|
|
|
|
| |
| Valley / Wall Fixing Fastener |
|
|
|
 |
| |
| |
|
|
Head Type |
Hex Washer Head (HWH) |
Drive Type |
Hexagonal, 8mm |
Point Type |
LEVINT Reduced Drill Point |
Available Diameter |
M4.8 (#10), M5.5 (#12) & M6.3 (#14) |
|
CORROSHIELD® Cordless Screwdriver (ASK18DVB)
CORROSHIELD® Hi-Torque Magnetic Hex Socket |
|
| |
Hex Washer Head with LEVINTReduced Drill Point |
|
| |
|
| |
|
|
| |
|
|
|
TAPPERMAN
|
- Farm Screws
- Drywall Screws
| |
 |
 |
| |
Farm Screws are specific designs of fasteners commonly used throughout Europe for the construction of residential and agricultural facade. These fasteners are designed with a reduced drill point for penetration into timber structures, and it can be used for sheet-to-sheet stitching applications too. Improvements have been made to some of the critical design components of a farm screw to bring you a better product. TAPPERMAN® Farm Screws will drill more effectively into steel profiles with our LEVIN® Drill Point, and coupled with our Harpoon ThreadT, the securement into substrates has also been improved.
Colour matching the farm screws to the colour of your tile profile choice is also an option with TAPPERMAN® Farm Screws. We only use premium powder coating technology on our fully automatic powder coating line to provide you with that perfect match to your facade colours. Our production innovation makes colour coating very consistent. No more uneven colours, no more pre-mature colour fading, no more paint striping problems during the installation. TAPPERMAN® Farm Screws, it will last as long as your building. |
| |
| Self-Drilling |
| |
Head Type |
Hex Washer Head (HWH) |
Drive Type |
Hexagonal, 8mm |
Point Type |
LEVINT Reduced Drill Point |
Available Diameter |
M4.8 (#10), M5.5 (#12) & M6.3 (#14) |

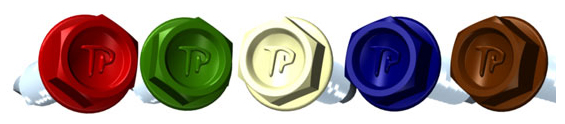

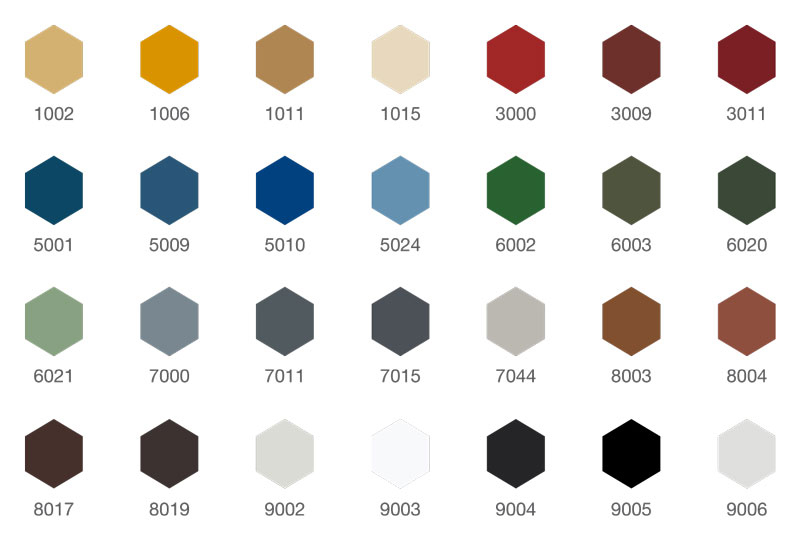

Head Painting Options |
|
|
CORROSHIELD® Cordless Screwdriver (ASK18DVB)
CORROSHIELD® Hi-Torque Magnetic Hex Socket |
|
| |
| |
|
| |
|
| |
|
|
| |
Farm Screws are specific designs of fasteners commonly used throughout Europe for the construction of residential and agricultural facade. These fasteners are designed with a reduced drill point for penetration into timber structures, and it can be used for sheet-to-sheet stitching applications too. Improvements have been made to some of the critical design components of a farm screw to bring you a better product. TAPPERMAN® Farm Screws will drill more effectively into steel profiles with our LEVIN® Drill Point, and coupled with our Harpoon ThreadT, the securement into substrates has also been improved.
Colour matching the farm screws to the colour of your tile profile choice is also an option with TAPPERMAN® Farm Screws. We only use premium powder coating technology on our fully automatic powder coating line to provide you with that perfect match to your facade colours. Our production innovation makes colour coating very consistent. No more uneven colours, no more pre-mature colour fading, no more paint striping problems during the installation. TAPPERMAN® Farm Screws, it will last as long as your building. |
| |
| Self-Piercing |
| |
Head Type |
Bugle Head (BGH) |
Drive Type |
Philips |
Point Type |
Needle Point |
Available Diameter |
M4.8 (#10), M5.5 (#12) & M6.3 (#14) |
|
CORROSHIELD® Cordless Screwdriver (ASK18DVB)
CORROSHIELD® Hi-Torque Drywall Bit (DWBT25) |
|
| |
| |
|
| |
|
|
|
|
|
 |
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
